This section describes how to use OneLogin SAML 2.0 authentication to log in to your ovice account. If you want to set up common SAML authentication for multiple spaces in a hierarchical structure (building), please refer to the following.
SAML authentication settings for a hierarchical structure (building)
Advance Preparation
1. Make sure you have the necessary permissions to set it up
- OneLogin admin privileges
- ovice admin privileges

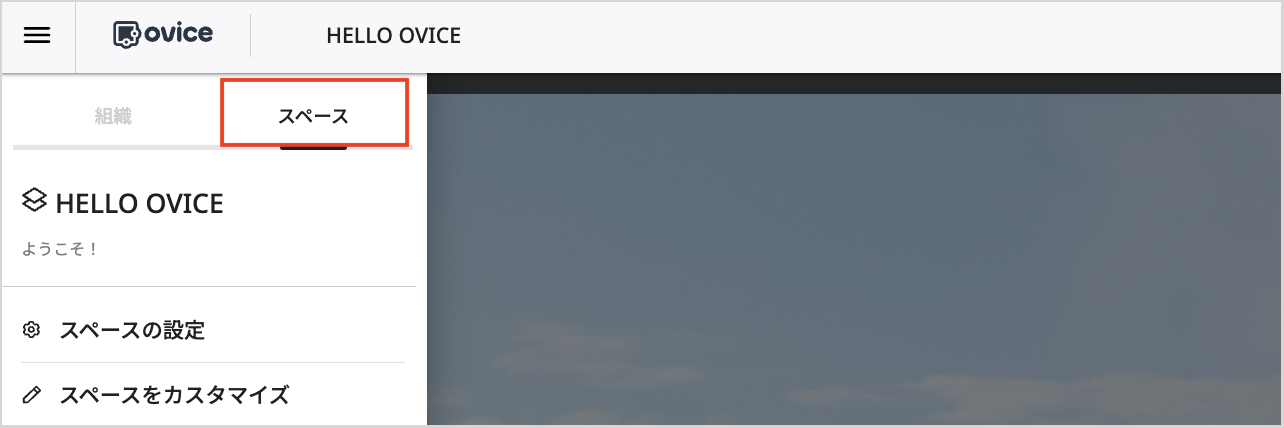

2. Click the three dots in the space header and select the "Space" tab.
*If you are not the organization owner, there is no need to select a tab.
3. Go to "Space Settings" → "Space Access Settings" → "Member Whitelist Rules" and click "Email Account Authentication"

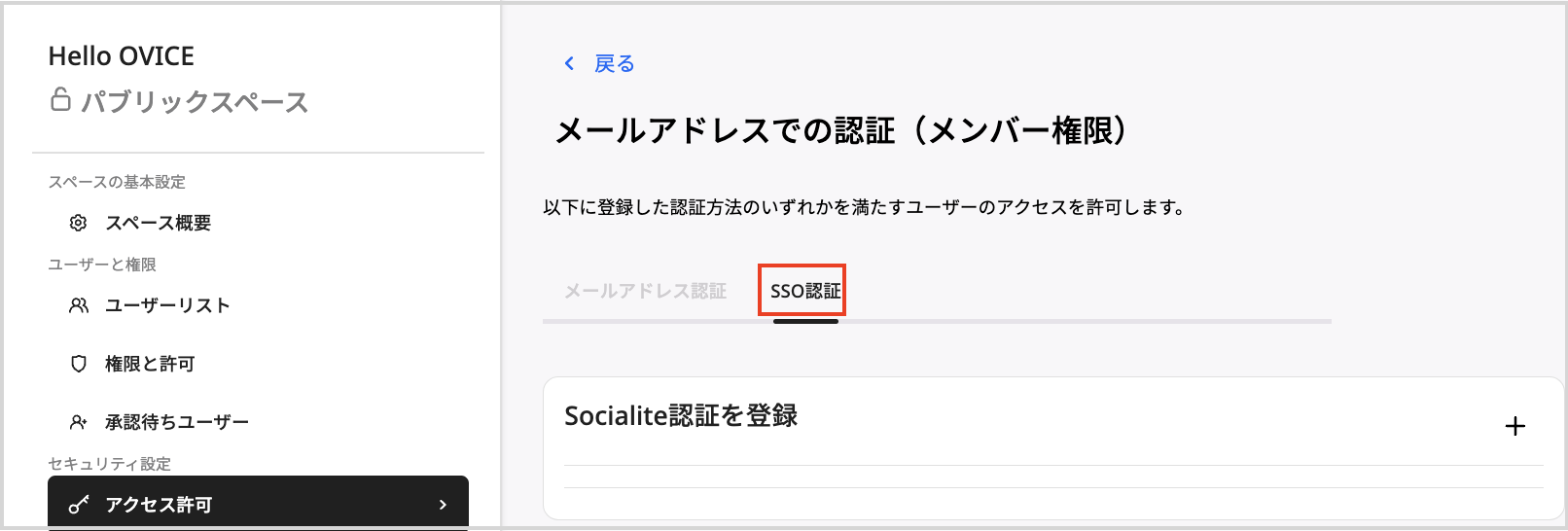

4. Select the "SSO" tab
5. Click the + button next to "SAML Authentication Setup"
6. Enter any name in the IdP name field.
This name will appear on the space URL login screen.
7. Select the redirect destination
Select the screen each user will be redirected to when they log in.
| space | Redirect into space |
| lobby | Redirect to the lobby screen (space list) |
Do not close the ovice settings screen at this point, as we will set other items later.
Configuring OneLogin
1. Access the OneLogin administration screen
https://app.onelogin.com/login

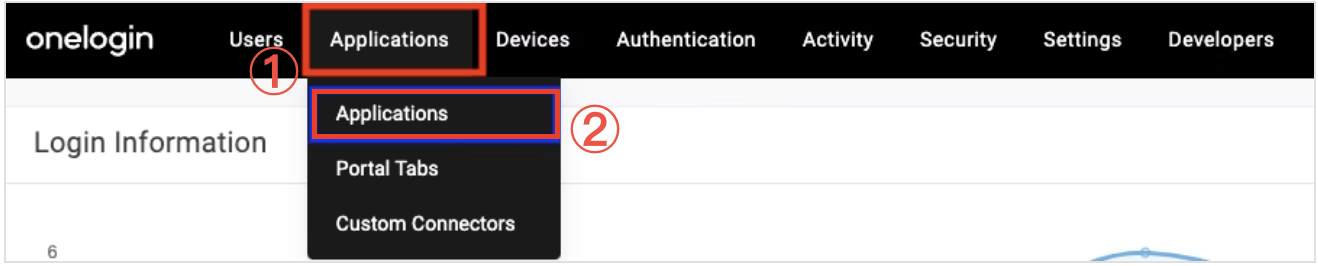

2. Click "Applications" from the "Applications" menu bar.
3. Click "Add App"
4. Enter "SAML" in the search box and click "SAML Custom Connector (Advanced)"
5. Change the "Display name" to any name and click "Save"
*The icon image can also be changed.

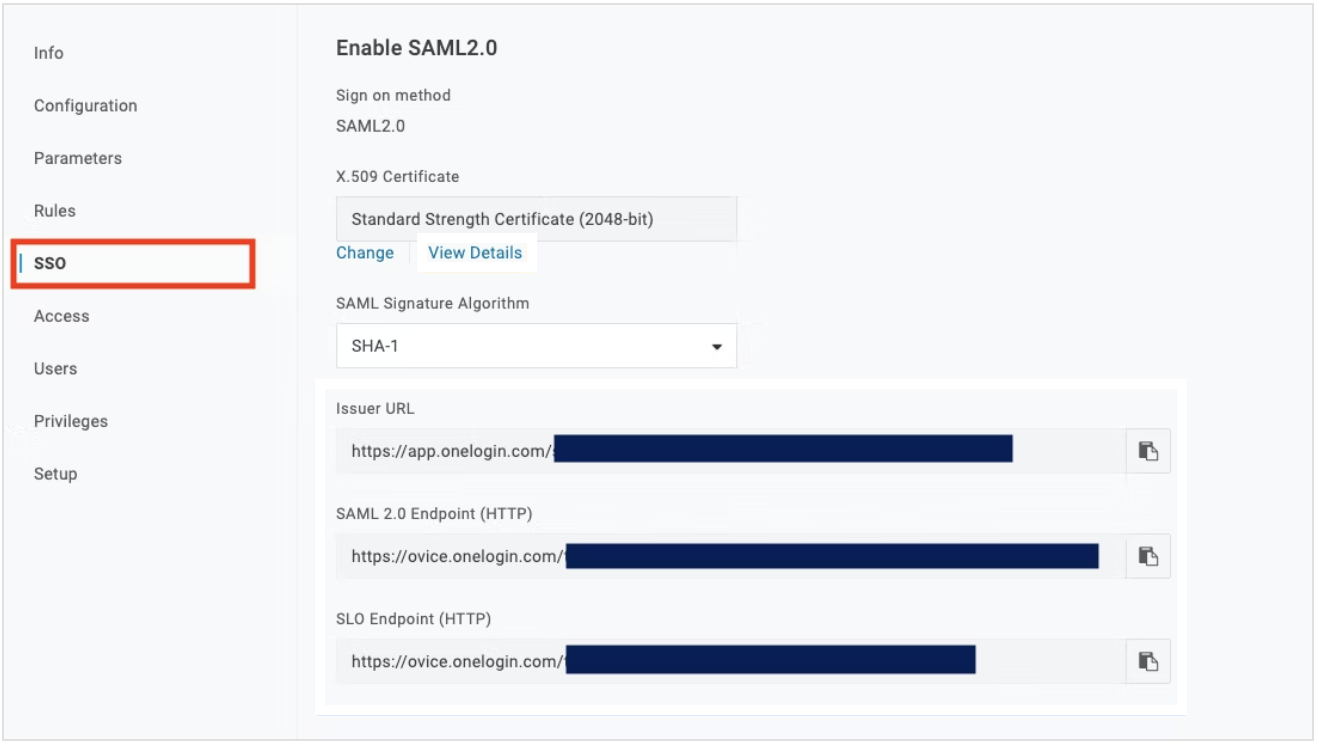

6. Click "SSO" in the sidebar
7. Copy and paste the OneLogin information into the service settings screen you prepared in advance
| OneLogin settings screen (copy source) | ovice setting screen (paste destination) |
|---|---|
| View Details for X.509 Certificate | IdP x509 cert |
| Issuer URL | Entity ID |
| SAML 2.0 Endpoint (HTTP) | IdP Login URL |
| SLO Endpoint (HTTP) | IdP Logout URL |
8. Click "Save" on the ovice settings screen
The displayed reply URL and login URL will be set in OneLogin later, so do not close the ovice settings screen at this point.

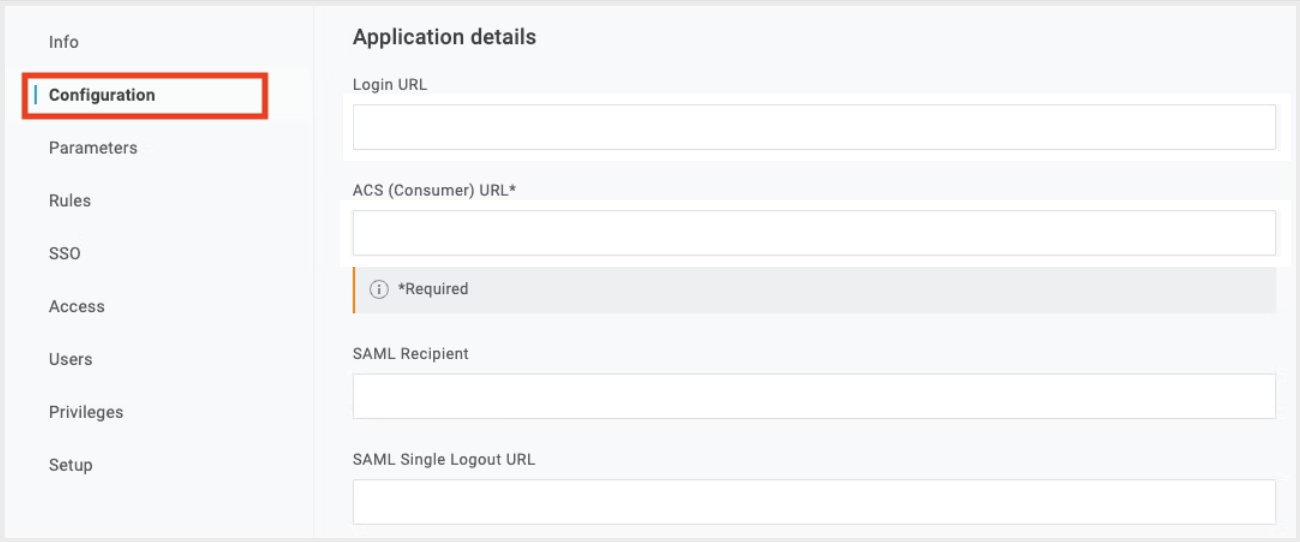

9. Click "Configuration" on the sidebar of the OneLogin settings screen
10. Edit each item
| OneLogin settings screen | Editing Contents |
|---|---|
| Recipient | Paste the "Reply URL" from the ovice settings screen |
| Login URL | Paste the "Login URL" from the ovice settings screen |
| SAML not valid before | Delete Default |
| SAML not valid on or after | Delete Default |
| SAML initiator | Set as Service Provider |
| SAML signature element | Assertion |
*Other items can be left in the default state.
*There is no need to set the "Identifier" item, which can be obtained on the ovicee setting screen.
11. Click "Save"
12. Click "Parameters" on the sidebar
13. Repeat steps 14 to 18 twice and set the following two items as parameters:
| Field name | Value |
|---|---|
| http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname | First Name |
| http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress |
14. Click the "+" button
15. Set the above string in Field name and click "Include in SAML assertion"
16. Click "Save"
17. Select the above string in Value
18. Click "Save"
From step 19 onwards you will add users to the application you created.

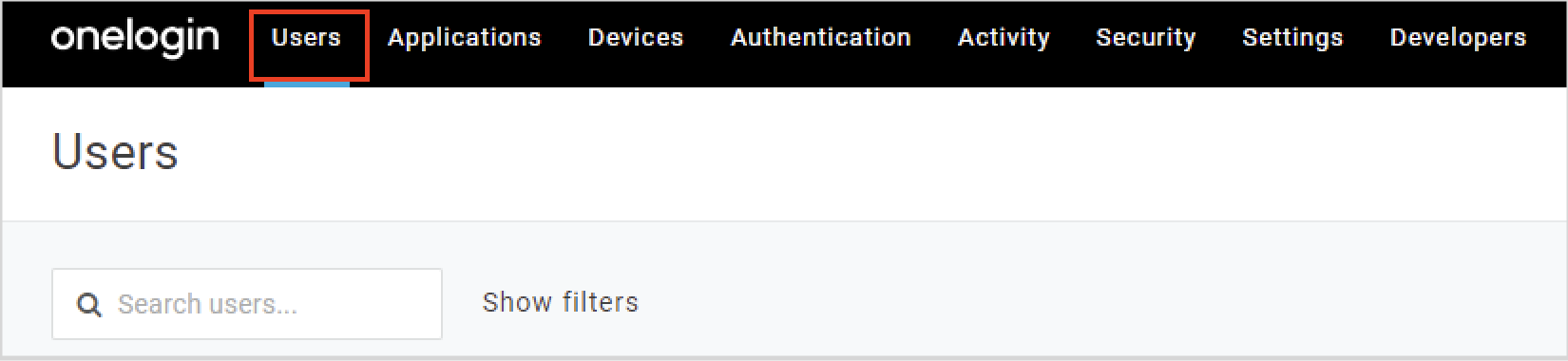

19. Select “Users” in the Users tab
20. Select the relevant user and click "Applications"

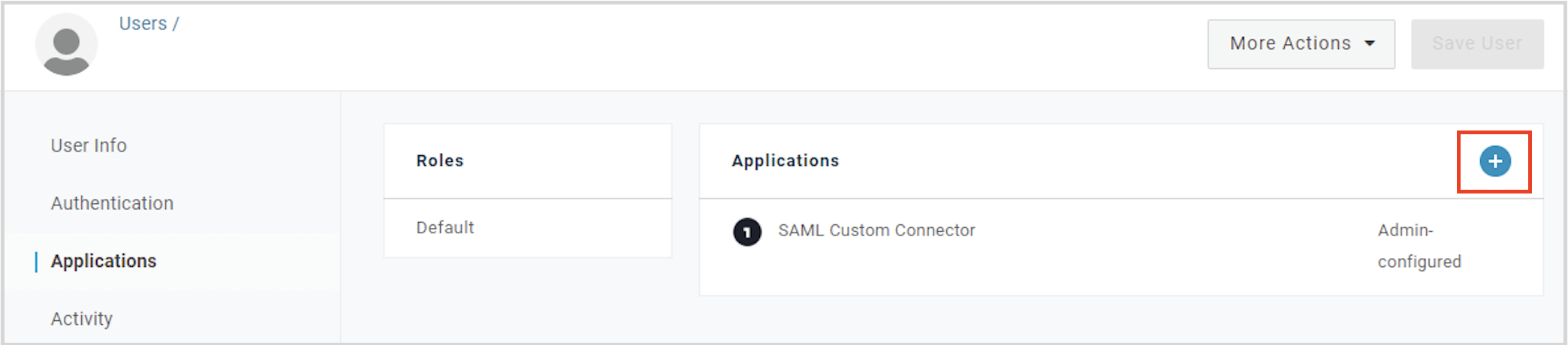

21. Select the "+" button on the top right
22. Select the Application you created from the drop-down list and click the "Continue" button.
[Optional] How to add SAML authentication to permission settings
By combining the public settings and Space Access Settings of ovice, it is possible to allow only users who have authenticated with SAML to access the space.
1. Scroll down on the ovice SSO settings screen and check the SAML authentication settings you created under "Activate SSO authentication"
2. Click "Save"

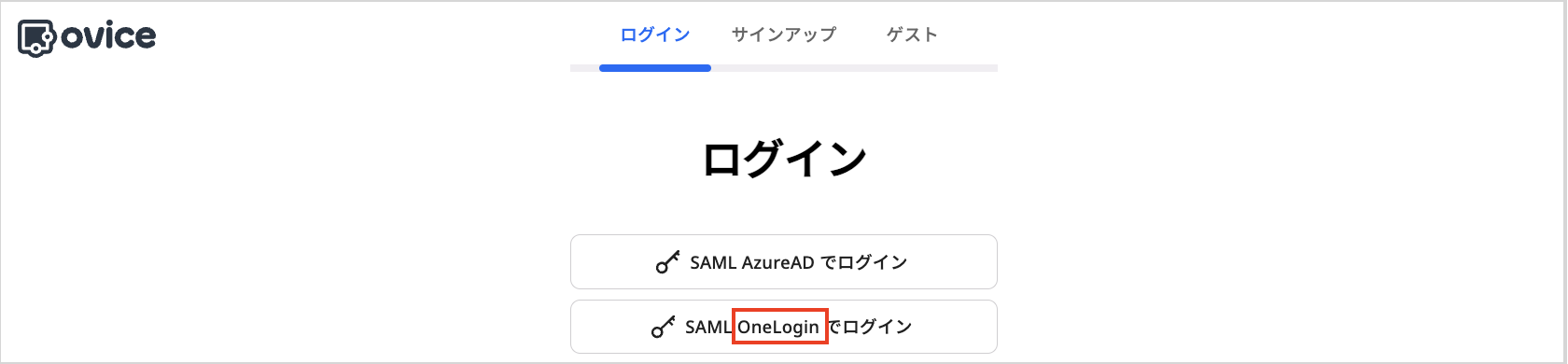

Logging in with OneLogin
Please refer to the following and try logging in.
Log in with the space's own SSO (SAML authentication, etc.)
If you are unable to log in using OneLogin
Please check the following:
- When logging in with SAML authentication, I get a 500 error
- Please make sure that each item in the app you created (assertion information, etc.) is set correctly.
- Make sure the user is assigned correctly in the Users and Groups settings.
Set up common SAML authentication for spaces in a hierarchical structure (building)
Set up the quotation settings for the space where OneLogin is set. Please see below for the setting method.
Inheritance Settings
