Helpful Information for Customizing Your Space

Background Image Upload Size

Plan Number of Squares Pixel Size Data Capacity
S max 120 1200×640 10MB or less
M max 480 2400×1280 10MB or less
L max 2000 4800×2560 10MB or less

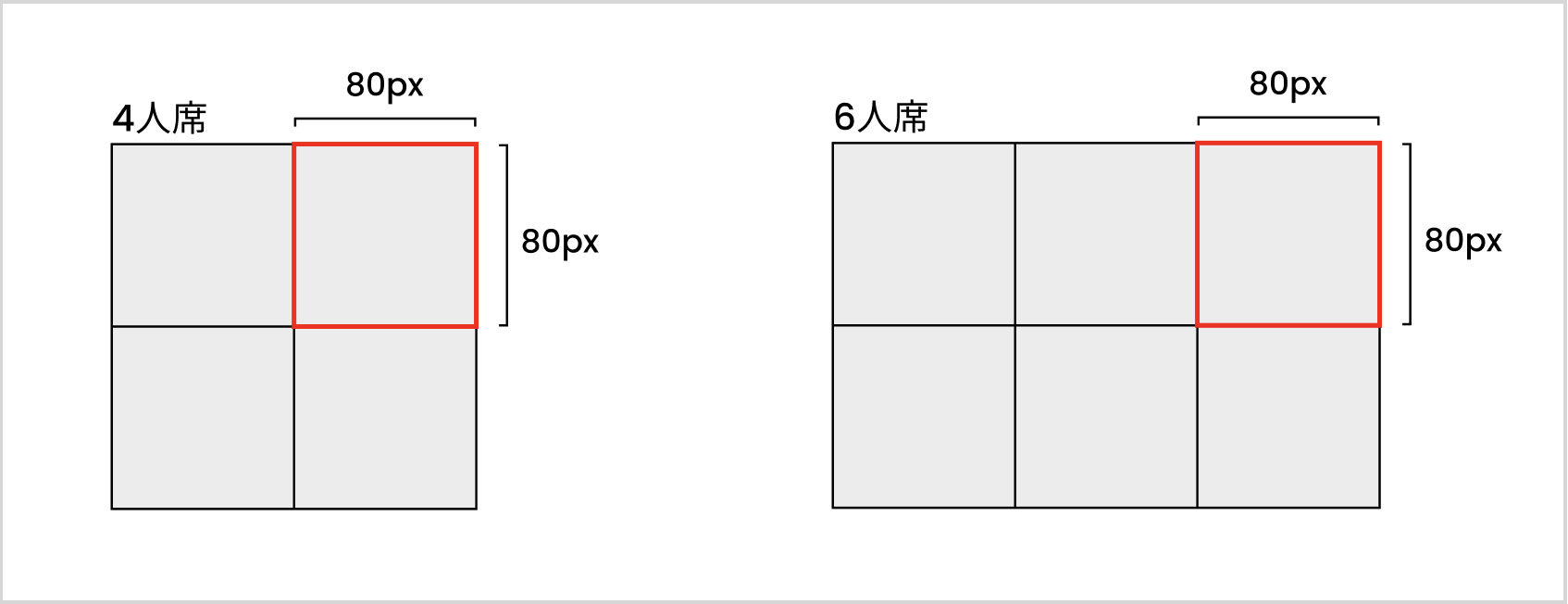

1 Square Range Size

80x80 pixels



Avatar Size

64x64 pixels



Meeting Room Scale

One user can enter per square.

Screenshot 2023-10-06 at 4.42.53 PM.png



Recommended Sizes for Tables and Chairs

element pixel size
Table 100~160
Chair 64~70





Upload Format

JPEG format



Object Range

The higher the magnification of an object, the wider the range that audio and video can reach.
Range of Audio and Video

Object Magnification Audio Range (pixels)
0.5 150
1 300
1.5 450
2 600
3 900
4 1200
5 1500
6 1800
8 2400
10 3000
12 3600
16 4800
20 6000
24 7200
28 8400
32 9600
48 14400
64 19200
