What is a Data Dashboard
A tool that visualizes user activity in a space. You can analyze the data and use it to make effective use of the space and establish usage . For details on how to apply, please see below.
Provision of ovice utilization data dashboard
Accessing the Data Dashboard
1. Access the data dashboard URL
2. Enter your email address and password and click "Login"
*When you access the site for the first time, the login information is included in the email from our company.

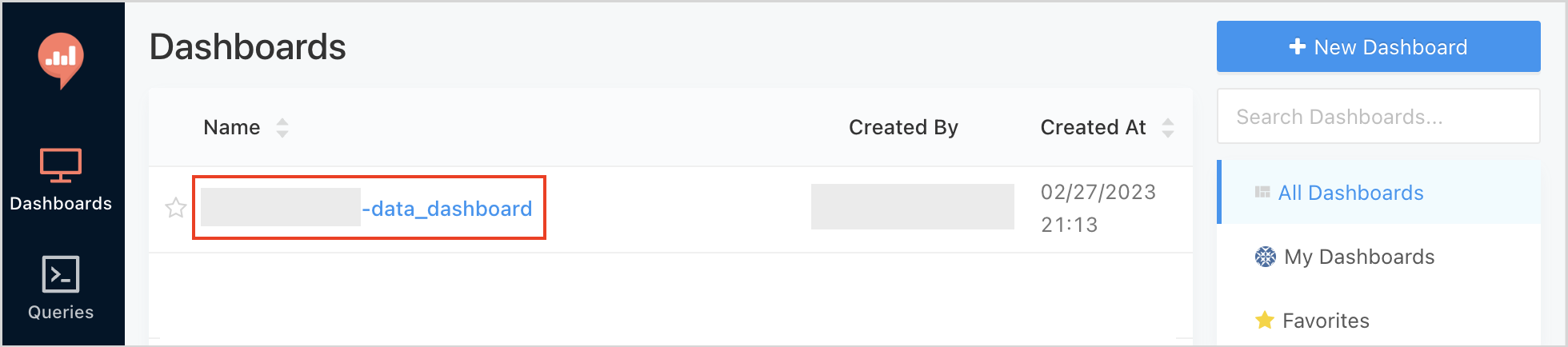

3. Click "〇〇-data_dashboard" on the upper left of the screen
* 〇〇 differs for each customer.
Items Available on Each Board
〇〇-workspaces--for _data_dashboard
Displays the space name.
| space | space name |
List of Spaces
DAU, WAU, and MAU for each space are displayed.
| domain | space domain |
| dau | Daily Active Users |
| wau | Weekly Active User |
| mau | Monthly Active Users |
Total Spent Hour / DAU Trend
The DAU and average stay time of the target space are displayed. Users who access the space the previous day and stay beyond the date are also counted.
| date | date |
| hour | Time spent (total time spent on the day) |
| hour_by_uu | Average stay time (hour ÷ uu) |
| uu | Number of unique users (total number of uu on the day) *Counted when accessing or leaving the space |
Daily Active Users
The DAU for each space is displayed. * Only users who went online on that day are counted.
| uu | Number of unique users (total number of uu on the day) |
Daily Usage Space
Displays the space congestion rate for each space.
Calculation formula: uu accessed on that day / space size (50, 200, 500)
Example: The congestion rate on the day when 10 uu were accessed in a 50 size space is 20%
| date | date |
| space | space name |
| uu | Number of unique users (total number of uu on the day) |
| usage_space | space density |
Daily Usage Member
Displays the space utilization rate for each space.
Calculation formula: uu of administrators/members who accessed on that day / uu of registered administrators/members
| date | date |
| space | space name |
| uu_member | uu number of registered administrators and members |
| usage_member | Space retention rate |
Recent User Stats
Each activity achievement for each member is displayed. All users who have accessed so far will be displayed. Users who do not see achievements have not accessed during the period. Each time you access with a guest account, you will be identified as a different user and your achievements will be displayed separately.
| name | User display name |
| User's email address | |
| speak_count |
Number of utterances (number of waveforms that appear during utterance) * If there is a pause of 0.3 seconds or more, the waveform will be generated again and counted * Even if you connect to a megaphone or an object and speak, it will be counted * Regardless of whether the other party responds or not, speak once Then count * Conversation in the conference room is also counted |
| move_count | Number of times the avatar was moved |
| approach_count | The number of times another avatar turned on their microphone and came within range of your voice while your avatar was not moving for 1 minute |
| room_count | Number of room movements ( including silent rooms ) |
| chat_count | Chat usage count (including mention chat) |
| reaction_count | number of reactions |
| staying_hour |
Time spent in the space |
| speak_hour |
Speech duration *Even if you speak while connected to a megaphone or object, it counts *Each speech is counted, regardless of whether the other party responds or not *Conversations in conference rooms are also counted |
| meeting_room_hour | Time spent in meeting rooms ( excluding silent rooms ) |
| group_object_hour |
Connection time to objects *Both space objects and quick objects are counted |
| screenshare_hour | screen share time |
| megaphone_hour | megaphone usage time |
Speak Count x Move Count
A scatter plot of the number of utterances and the number of movements is displayed. Used for analysis of user agency.
| Horizontal axis | Utterance count |
| Vertical axis | Number of moves |
| Blue circle | Actual value of each individual |
Speak Count x Approach Count
A scatter plot of the number of utterances and the number of contacts is displayed. Used for user passivity analysis.
| Horizontal axis | Utterance count |
| Vertical axis | Number of contacts |
| Blue circle | Actual value of each individual |
Dwell Time x Approach Count
A scatter plot of dwell time and number of contacts is displayed. Used for user passivity analysis.
| Horizontal axis | Dwell time |
| Vertical axis | Number of contacts |
| Blue circle | Actual value of each individual |
Dwell Time x Speech Count
A scatter plot of dwell time and number of utterances is displayed. Used for analysis of user agency.
| Horizontal axis | Stay time |
| Vertical axis | Speech count |
| Blue circle | Actual value of each individual |
Speech Count
The number of times users have spoken is displayed for each space.
Move Count
The number of user moves are displayed for each space.
Approach Count
The number of users approached is displayed for each space.
Meeting Room Count
The number of users using the conference room is displayed for each space.
Chat Count
The number of users who sent a chat is displayed for each space.
Reaction Count
The number of users who reacted is displayed for each space.

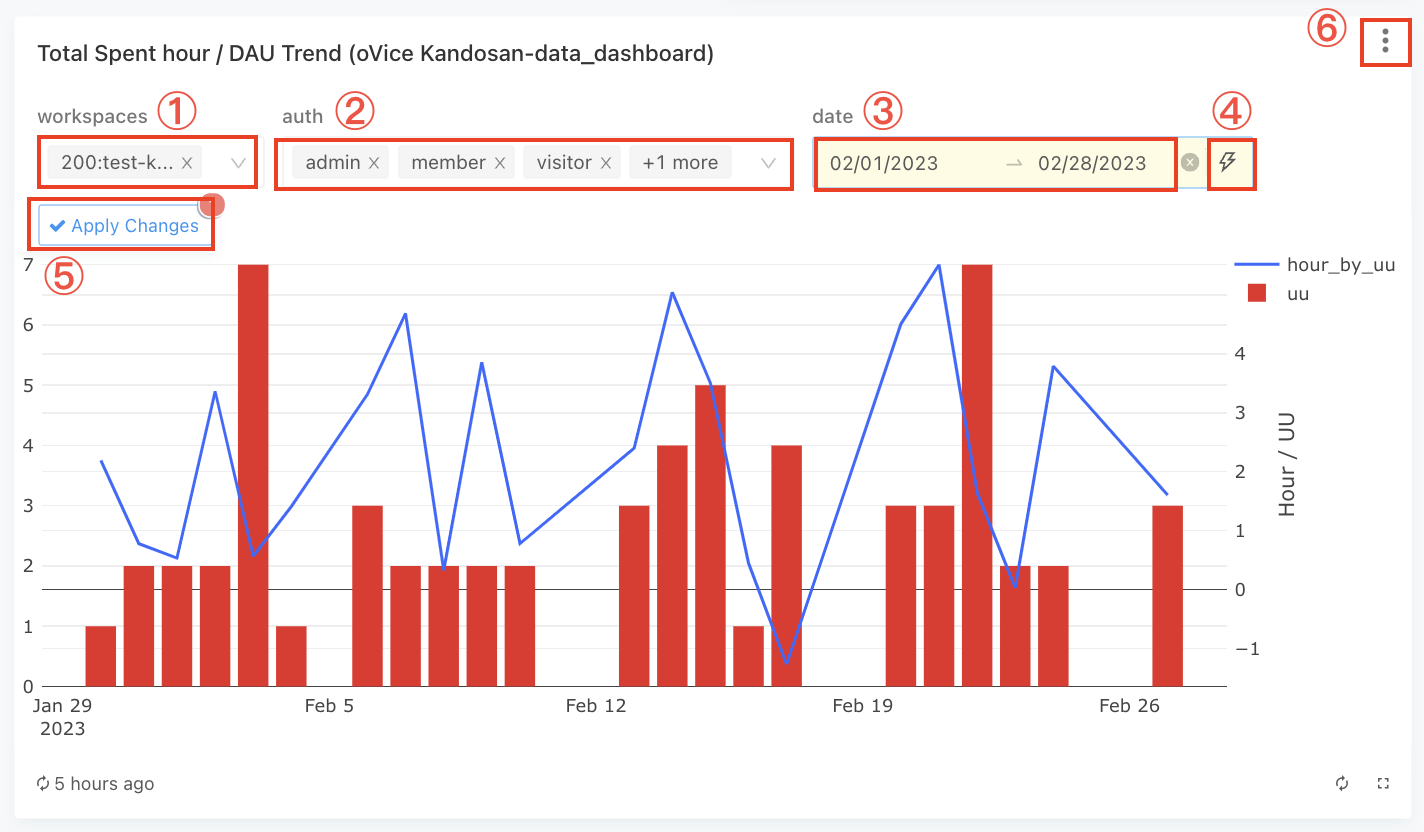

Using Each Board
Each board filters and exports extracted data.
| ①Workspaces | If you have multiple spaces, select any space. |
| ②auth |
Select the user privileges to be extracted. admin: administrator member: member visitor: visitor guest: guest User Role-Based Permissions |
| ③date (calendar) | Select a date range from the calendar. |
| ④date (fixed range) | Select from a fixed date range. |
| ⑤Apply Changes | Reflects the contents of filtering in the data. |
| ⑥Export | Export data in CSV or Excel format. |
FAQs
Data dashboard no longer shows data
① Access the data dashboard URL again.
Example) https://clients.data.ovice.io/dashboards/〇〇-xx-data_dashboard (〇〇 is your company's numerical value, and xx is your company's account name.)
(2) Data may not be displayed if any of the space domain, space name, or space size is changed. Please contact us.
Some users do not appear in Recent user Stats
The Recent user stat shows all users who have visited so far. Users who do not see any achievements have not accessed during the period. Make sure you are not filtering by date or user rights.
The number of users displayed in Total Spent hour / DAU Trend and Recent user Stat are different
Since Recent user Stat shows all users who have accessed so far, it is different from the number of users in Total Spent hour / DAU Trend.
What should I do if I want to see results for a specific day?
For example, if you want to see the results of November 15th, select the two days of November 15th and November 16th on the "date" calendar and update.
Can I see achievements by time period?
Although it cannot be seen in the current specifications, we are considering displaying results in units of one hour for DAU, Usage Space Usage Trend, etc.
Is there a difference between Total Spent hour / DAU Trend and Daily Active Users Usage Trend?
Total Spent hour / DAU Trend
Users who access the space the day before and stay beyond the date are also counted.
Daily Active Users Usage Trend
Only users who are online on that day are counted.
I got "An error occurred while rendering the visualization"
You may receive an error message while activating your web browser's translation feature. Please turn off the translation function of your web browser and load the data dashboard again.
Is it possible to customize the display items of the graph by changing or adding them?
It cannot be customized.
Can I see who has spoken with whom?
I can't confirm. The results displayed in Recent user Stat show the amount of activity of the corresponding user.
When is the data reflected/updated?
Timing has not been announced. You can check yesterday's data from the next day onwards.
The same person is counted separately in Recent user Stats
If you access with a different account, even the same person will be aggregated and displayed as a different user.
